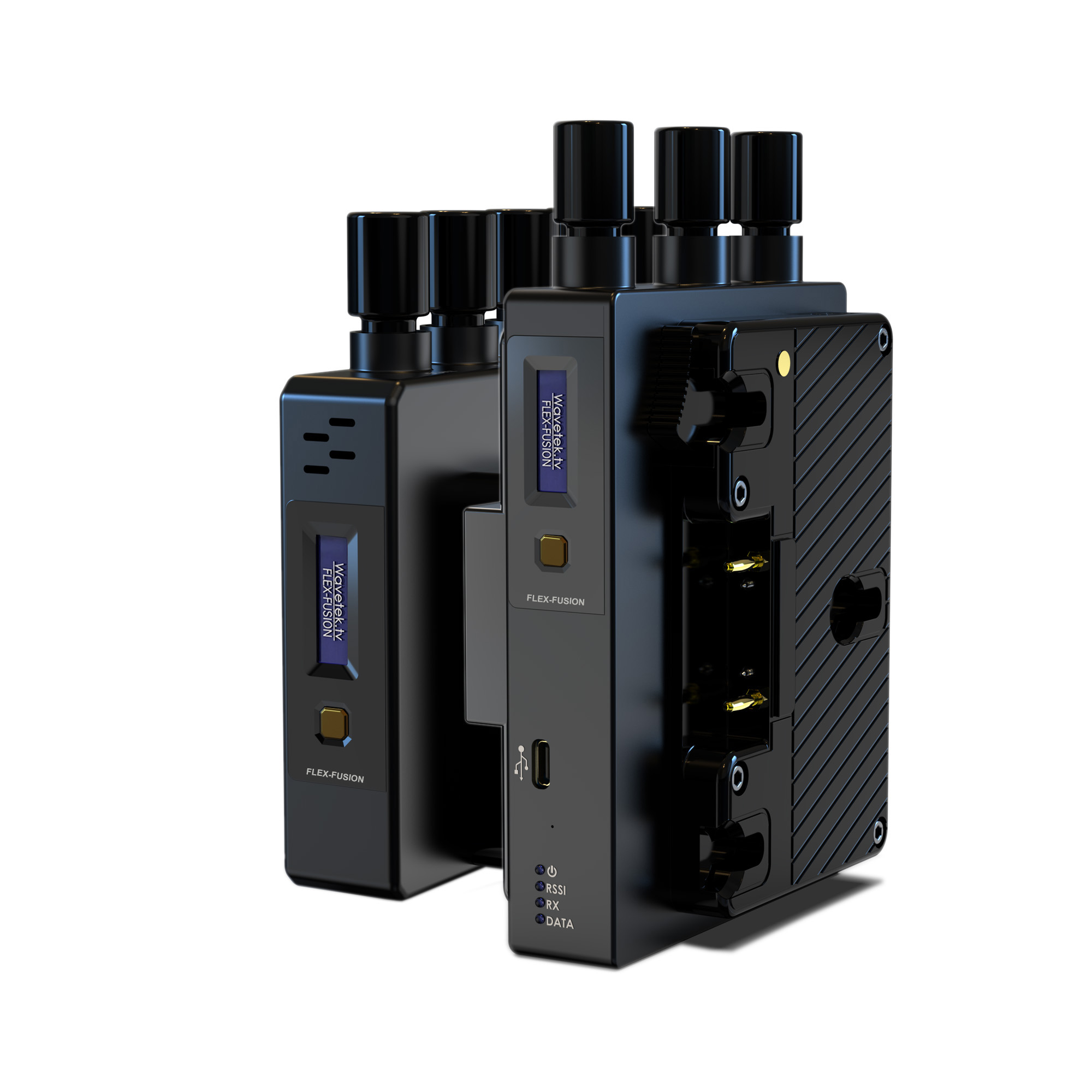

FLEX Fusion
Integrated wireless HD video, IP data and Sony camera control with sub-millisecond latency and up to 600 m range.
FLEX Fusion combines ultra-low-latency wireless video, IP data and Sony camera-control transmission in one compact platform. Engineered for professional sports, ENG, concert and live-event workflows, it uses dual-frequency 5 GHz and 2.4 GHz technology for reliable mission-critical operation. Key features include latency below 1 ms, dual-band wireless technology, Sony legacy camera control, OLED status displays and integrated IP data connectivity.
Technical specifications
- Power Input
- 7.5–36 V
- Operating Temperature
- -5°C to +40°C
- Dimensions
- 163 × 97 × 26 mm
- Antenna
- 6 × RP-SMA
- Weight
- 550 g
- Battery Plates
- V-Mount / Anton Bauer
- Dimensions
- 132 × 100 × 26 mm
- Antenna
- 3 × RP-SMA
- Weight
- 450 g
- Video Input
- HD-SDI loop and HDMI
- Video Output
- 2 × HD-SDI and HDMI
- Control Interface
- Sony legacy camera control
- Ethernet
- Dual 10/100Base-T Ethernet
- Record Trigger
- Supported
- Audio
- Embedded
- Frequency
- 5 GHz / 2.4 GHz
- Latency
- Under 1 ms
- Modulation
- Advanced OFDM RF technology
- Range
- Up to 2,000 ft / 600 m line-of-sight
- Bandwidth
- 20 or 40 MHz
- TX Power
- 11–30 dBm; 2.4 GHz link up to 23 dBm
